6 Lines Plastic Bag Making Machine

6 Lines Plastic Bag Making Machine

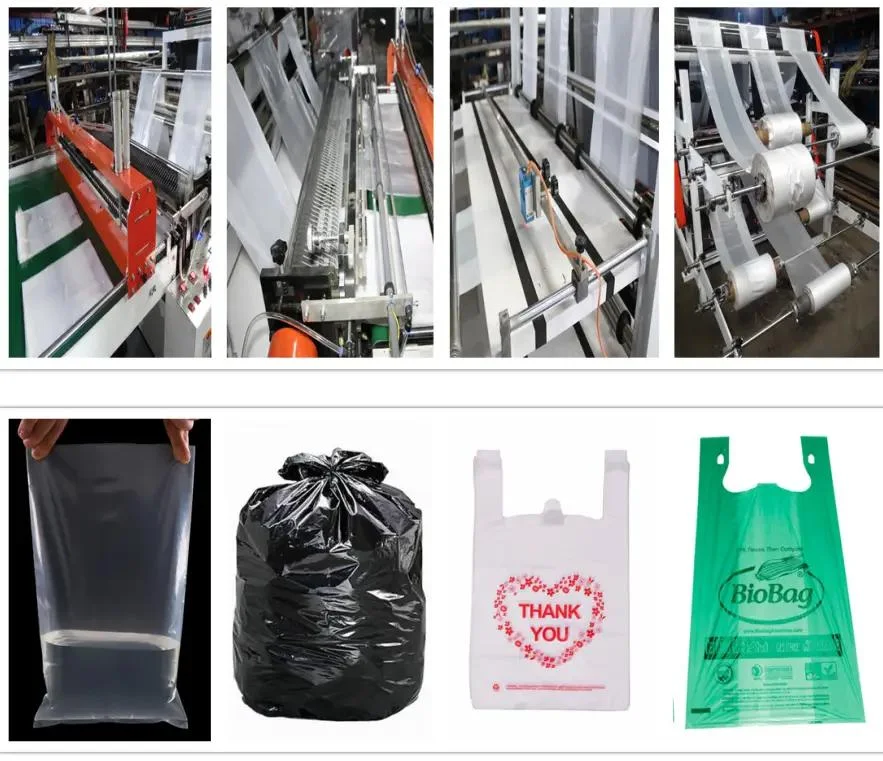

The 6 Line Plastic Bag Manufacturing Equipment is designed with six unwinders, six roll films, and one photocell, enabling the simultaneous production of six bags. It is suitable for creating a variety of bags, including blank, colored, flat, and vest bags, as well as other types of flexible plastic packaging.
Features:
Comprehensive computer control throughout the manufacturing process.
A seamless workflow from film roll to finished bag.
Equipped with a servo motor for easy adjustments of bag length and production speed.
Automatic film feeding system, eliminating the need for tension adjustments.
Automatic shutdown in case of film feeding interruptions or bag jams.
High production efficiency, reducing the need for labor and saving time.
The machine incorporates both heat sealing and cold cutting capabilities.

6 Lines Plastic Bag Making Machine

Main Technical Parameter

Model	SHXJ-D1000	SHXJ-D1200	SHXJ-D1500
Cutting&Sealing Width	920mm	1120mm	1420mm
Maximum Bag Length	2000mm	2000mm	2000mm
Machine Speed	40-100pc/min ×6	40-100pc/min×6	40-100pc/min×6
Number of Strip	6	6	6
Power of Motor	2.2kw	3kw	4kw
Weight (kg)	1300kgs	1300kgs	1600kgs
Dimension	4500×2000×1800mm	4600×2100×1800mm	4800×2200×1800mm
Bag Material	LDPE,HDPE,LLDPE,recycle film
Kind of Bag	T-shirt bag,Shopping bag,super market bag,KFC bag,Carrefour bag,LuLu Bag
Bag Color	Transparent,Black,Red,White,blue bag,color changed by masterbatch
Power Voltage	220V
Machine Working Time	24 hours * 7 days
Warranty	1 year

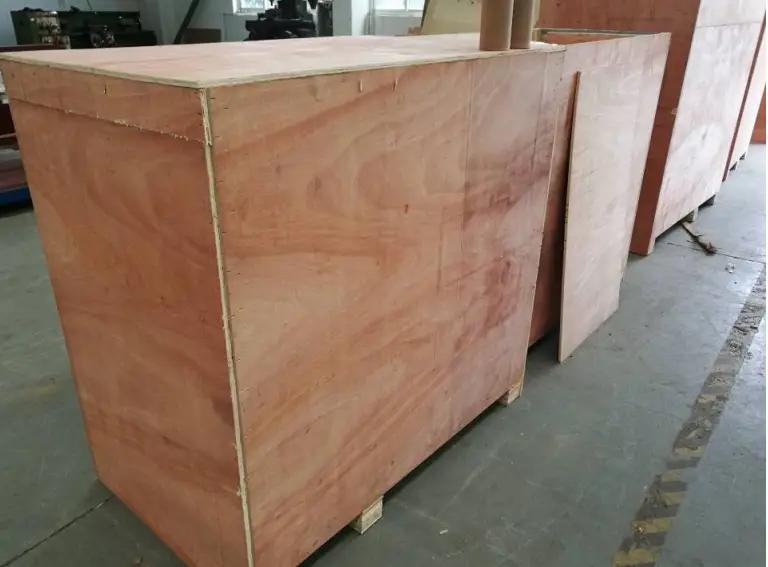

If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.

Our Main parts cooperator as following brand,but standard parts all made from China.
